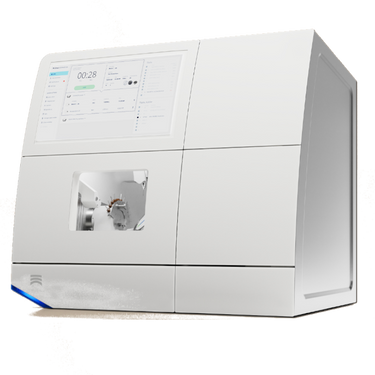

Ceramill Matron milling machine
The Ceramill Matron is the first fifth-generation milling machine with superior features compared to previous generations. Its outstanding features make it more robust, faster, and more intelligent than conventional milling machines. Exceptional precision and excellent milling results for a wide range of materials, especially carbide milling, along with automatic order processing for up to eight blocks, are the distinguishing features of the Ceramill Matron. Integrated into the established Amann Girrbach workflow, the Ceramill Matron is the perfect product for dental laboratories and practices wishing to advance the digitalization of their prosthetic workflows and who have the highest demands on quality and cost-effectiveness, and who enjoy practicing their craftsmanship.
Operating concept / Ease of use
- 21" Curved-Touch display for direct communication
- Guided work processes
- SnapMag – Plug&Play Tool Management
Scope of application
- Wide range of applications, including metalworking
- Dry and wet processing
- 5+ axis milling
- High production speed
Automation
- Self-calibration
- Automatic tool change
- Automatic cleaning
- RFID-enabled tools and blank holders
- HD video camera for direct support
- Automated tool inventory
- 8-seater roughcast
Technical data
| Dimensions D/W/H (mm) | 695 x 940 x 850 with blank changer |
| Empty/maximum weight (kg) | 150 |
| Electrical connection value | 100-230V - 50/60Hz, 220W |
| Spindle power (W) | 800 (continuous power), 1,370 (peak power) |
| Spindle speed (rpm) | 80 |
| Spindle Torque (Ncm) | 12 |
| Clamping collet (Ø mm) | 3 or 6 |
| Motorized axles | 5+3 |
| Scope of application | 5-axis milling and grinding (dry/wet) |
| Camera system | Full-HD video camera |
| Min. air requirement | 6 bar and 50l/min |
